Membrane Types We Install
Not all membranes are the same, and choosing the right system for your specific application makes a significant difference in long-term performance. We install three main membrane types across Lake Macquarie wet areas.
Liquid Applied Membranes
The most common system used in residential bathrooms. Applied by brush or roller in multiple coats, liquid membranes create a flexible waterproof coating that bonds directly to the substrate. They work across most bathroom applications, handle minor surface movement well, and allow proper coverage into corners and around penetrations that sheet systems can’t always reach.
Sheet Membranes
Pre-formed sheets bonded directly to the substrate. Sheet membranes deliver heavy-duty protection and are suited to specific applications where consistent thickness and high-load performance matters. Seamed installation requires precise workmanship — poor seaming is where sheet systems typically fail.
Combination Systems
A sheet membrane base layer combined with liquid applied walls. This approach delivers the best of both systems and is the standard for commercial-grade wet areas and premium residential installations. Where performance expectations are highest, combination systems are the right choice.
Quality Membrane Systems We Use
We work with manufacturer-approved, builder-trusted brands that carry a proven track record in Australian conditions:
• Davco
• Laticrete
• Dunlop
• Mapei
Quality membrane products matter beyond just brand recognition. Manufacturer warranties are only valid when a licensed installer applies the product to specification. Using quality systems also gives you documented compliance confidence and long-term performance that cheaper alternatives simply can’t match.
Every membrane system we install is selected based on the specific application, substrate condition, and performance requirements of your wet area.
AS 3740 Compliance and Application Areas
Every waterproofing membrane installation we complete in Lake Macquarie meets AS 3740 — the Australian Standard for waterproofing of domestic wet areas. Here’s what that means in practice.
AS 3740 Coverage Standards
• Minimum membrane thickness maintained across all surfaces
• Multiple coat requirement followed without shortcuts
• Correct overlap specifications at all seams and junctions
• Detail band installed at every required location
• Proper lapping at all membrane joins
Where We Install Membranes
Shower Floors – Full coverage across the entire shower floor, correct fall maintained to the drain, drain sealed correctly, membrane extended beyond the shower footprint, and P-trap or S-trap sealed at the penetration point.
Shower Walls – Minimum 1800mm height on all wet zone walls, membrane applied behind fixtures, correct corner treatment at every junction, and all penetrations sealed to specification.
Bathroom Floors – Entire floor area covered, membrane turned up walls 100-150mm minimum, treatment around the toilet base, vanity area covered, and doorway transition treated correctly.

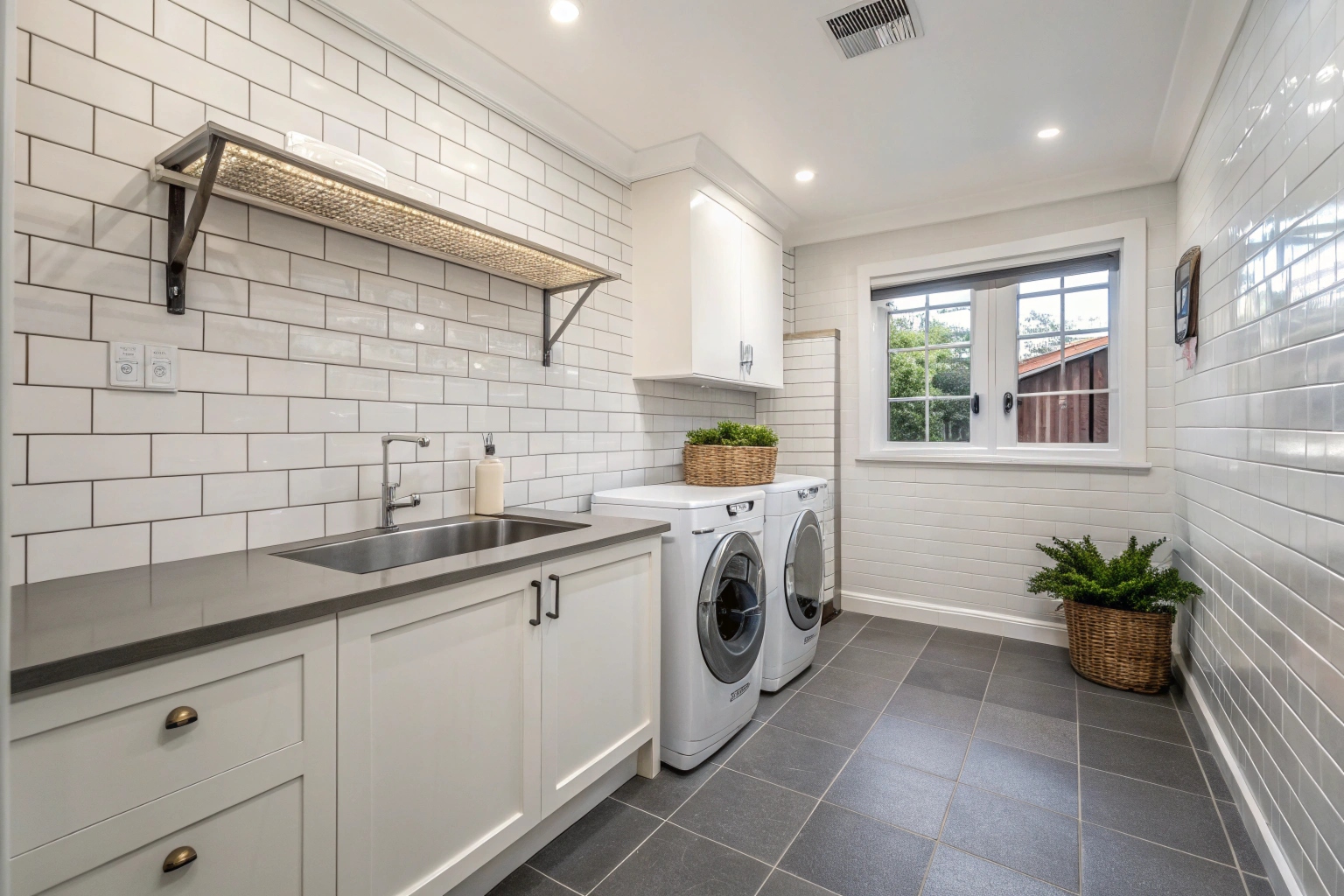

Other Wet Areas – We also install membrane systems in laundries, balconies, commercial wet areas, and pool surrounds. The same AS 3740 standards and installation process apply regardless of the application.
Testing and Certification Requirements
Before any tiling begins, every membrane installation is subject to:
• 24-hour flood test holding water across the full wet area
• Visual inspection confirming full coverage and correct detailing
• Written documentation of the completed installation
• AS 3740 certification issued on successful completion
Certification matters beyond compliance. It protects your renovation warranty, satisfies insurance requirements, and gives you documented proof the membrane was installed correctly — something that becomes very important if issues arise later.
Common Waterproofing Membrane Installation Mistakes
Poor waterproofing membrane installation is one of the most expensive problems a homeowner can face after a renovation. The damage doesn’t show up immediately — it hides behind tiles for months or years before surfacing as mould, soft floors, or water damage to the structure below. These are the mistakes that cause it.
Poor Surface Preparation
Dirty substrates, damp surfaces, unrepaired cracks, and skipped priming steps all prevent the membrane from bonding correctly. A membrane sitting on a compromised substrate isn’t protecting anything — it’s just sitting there waiting to fail. This is the most common cause of membrane failure we see when we’re called in to remediate someone else’s work.
Inadequate Coverage
Thin application, missed areas, poorly treated corners, and insufficient coats leave gaps in the membrane system. These gaps — sometimes called holidays — are all it takes for water to find a path through. A membrane system with holidays isn’t a waterproof system. It’s a system with weak points.
Incorrect Detail Work
Poor corner treatment, unsealed penetrations, wrong lapping at joins, inadequate upstand heights, and junction failures are where the majority of membrane systems break down over time. Detail work is the most skill-dependent part of the installation — and the part most likely to be rushed on a budget job.
How We Avoid These Problems
Every installer on our team is trained to manufacturer specifications and follows a consistent installation process on every job. We don’t cut cure times, skip detail bands, or reduce coat counts to speed up a job. Quality control at each stage of the installation is what separates a membrane system that performs for 15-20 years from one that fails inside twelve months.
Experience matters more in membrane installation than almost any other trade on a bathroom renovation.
Membrane Performance and Lake Macquarie Considerations
A correctly installed waterproofing membrane does more than just block water. It creates a continuous, flexible barrier that moves with the building, bridges minor substrate cracks as they develop, and maintains protection across the full wet area for the long term.
What a Quality Membrane System Delivers
• Prevents water penetration into the substrate and structure below
• Flexible protection that accommodates normal building movement
• Bridges minor cracks that develop over time in concrete and fibre cement
• Continuous barrier with no weak points when installed correctly
• Typical lifespan of 15-20 years or more with proper installation
Moisture Testing Before Installation
Before any membrane goes down, we test substrate moisture levels — particularly on concrete slabs. A membrane installed over a damp substrate traps moisture underneath rather than keeping it out, which causes adhesion failure and can accelerate deterioration of the substrate itself. Any moisture issues, rising damp problems, or drainage concerns are resolved before installation begins.
Why Lake Macquarie Demands Quality Installation
Lake Macquarie’s coastal environment puts bathroom membranes under consistent pressure that inland areas don’t experience to the same degree. High year-round humidity, salt air exposure, and the moisture load created by proximity to the lake all work against wet area substrates continuously.
A membrane system that might perform adequately in a drier climate needs to be installed to a higher standard here — correct coat thickness, proper detailing, and quality products rated for coastal conditions. Homeowners in Warners Bay, Valentine, Eleebana, and other lakeside suburbs particularly need membrane systems that account for the additional environmental load their properties carry.
Cutting corners on membrane installation in Lake Macquarie doesn’t save money. It just moves the cost further down the road — and by then it’s significantly larger.
Licensed Waterproofing Membrane Installation in Lake Macquarie
Waterproofing is a licensed trade in NSW. That’s not a technicality — it’s a legal requirement that exists because poor waterproofing causes serious structural damage to homes. Hiring an unlicensed installer puts your renovation warranty, your home insurance, and your property at risk.
Frequently Asked Questions About Waterproofing Membrane Installation
It depends on the application and substrate condition. Liquid applied membranes suit most residential bathrooms and are the most common system we install. Sheet membranes work better for specific heavy-duty applications. Combination systems deliver premium protection where performance requirements are highest. We assess each job and recommend the right system for your specific wet area before any work begins.
A minimum of two coats is required under AS 3740, applied perpendicular to each other for full encapsulation. High-risk zones including shower floors and heavily used wet areas receive a third coat for additional protection. Any installer offering single-coat application isn’t meeting the standard.
Most residential bathroom jobs take 2-3 days including cure time between coats. Rushing cure times to speed up a job is one of the most common ways membrane systems are compromised — we observe correct cure periods on every installation.
AS 3740 is the Australian Standard for waterproofing of domestic wet areas. It specifies minimum membrane thickness, coat requirements, upstand heights, detail band locations, and testing requirements. Every waterproofing membrane installation we complete in Lake Macquarie meets this standard in full.
Yes. Every job is completed with a 24-hour flood test, visual inspection, and written AS 3740 certification. Documentation is provided on completion and is required before tiling proceeds.
A correctly installed AS 3740 membrane system typically performs for 15-20 years or more. Lifespan depends on installation quality, product selection, and substrate conditions — which is why proper installation from the start matters more than anything else.
Pricing depends on the size and complexity of the wet area. As a general guide — shower only: $800-$1,500, standard bathroom: $1,200-$2,000, large wet area: $2,000-$3,500 or more. All pricing includes flood testing and AS 3740 certification.
Get a Quote for Waterproofing Membrane Installation in Lake Macquarie
The membrane is the most important part of any bathroom renovation. Everything else — the tiles, the tapware, the fixtures — sits on top of it. Get the membrane right and your renovation is protected for decades. Get it wrong and the rest of the job becomes irrelevant.
Our team delivers licensed waterproofing membrane installation across Lake Macquarie, covering Warners Bay, Belmont, Charlestown, Cardiff, Valentine, Eleebana, Redhead, Blacksmiths, and surrounding suburbs. Every installation is AS 3740 compliant, completed by licensed installers, flood tested, and certified on completion.
Whether you’re mid-renovation and need a membrane installer before your tiler can start, planning a full bathroom renovation, or dealing with a failed membrane that needs remedial work — we’re ready to help.
What You Get With Every Job
• Licensed waterproofer completing the installation
• Quality membrane systems from Davco, Laticrete, Dunlop, or Mapei
• Correct coat application to AS 3740 specifications
• Detail band at every junction, corner, and penetration
• 24-hour flood test on completion
• Written AS 3740 certification provided
• Full insurance backing on every project
Request Your Membrane Installation Quote
Call us directly to discuss your wet area and get a quote for licensed waterproofing membrane installation in Lake Macquarie. We respond quickly, assess your specific application, and give you clear pricing with no hidden costs.
Call 02 4058 1269 for Licensed Membrane Installation
Request a Quote Online — Response Within 24 Hours
Don’t let the most critical part of your renovation become the weakest link. Get it installed correctly the first time.
